[2026] Pass Autodesk RVT_ELEC_01101 Exam Updated 65 Questions [Q37-Q54]

[2026] Pass Autodesk RVT_ELEC_01101 Exam Updated 65 Questions

Get 2026 Updated Free Autodesk RVT_ELEC_01101 Exam Questions and Answer

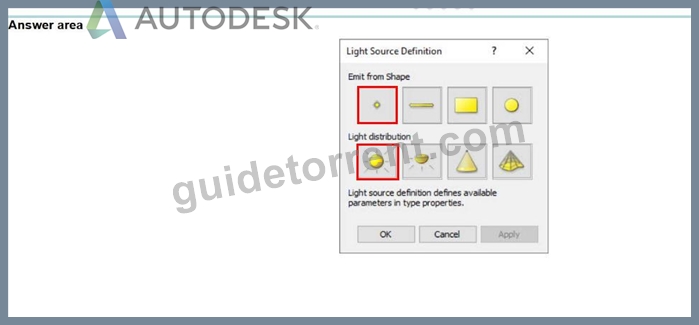

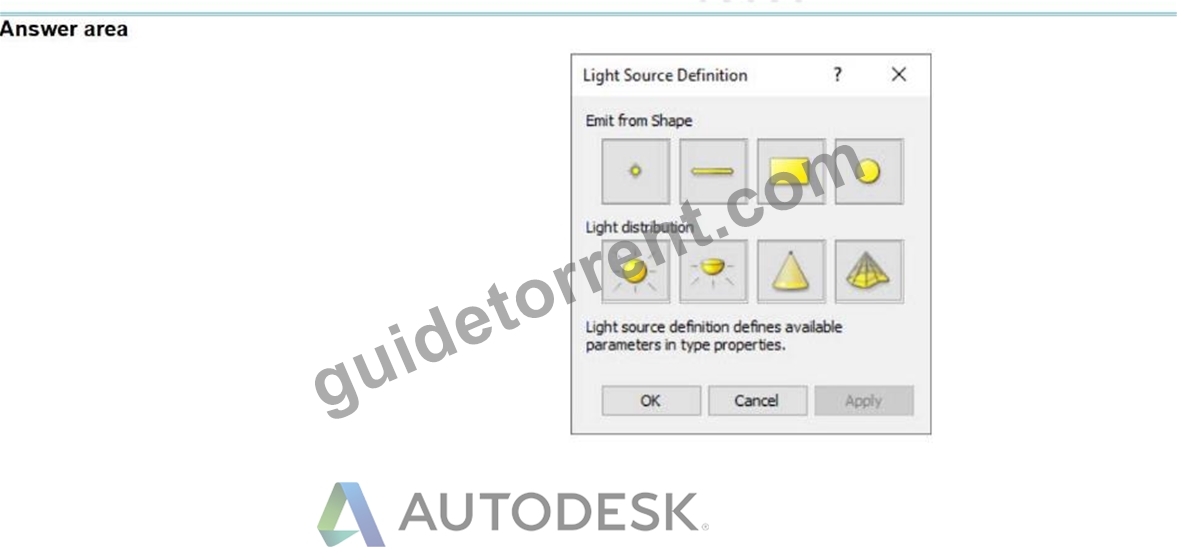

NEW QUESTION # 37
Refer to exhibit.

The exhibit is a lighting fixture family in the Family Editor environment and the light source is selected.
An electrical designer has downloaded a photometric web tile in IES format from a manufacturer's website for use within this lighting fixture family.
Define the light source's Emit Shape and Light Distribution for use with the photometric web (IES) file. (Select two in the answer area.)

Answer:

Explanation:

NEW QUESTION # 38
Which Revit command is used to map a Keynote Table file?

A. Keynote Manager
B. Keynote Legend
C. Keynoting Settings
D. Element Keynote

Answer: C

Explanation:
The correct command in Revit used to map (assign or browse to) a Keynote Table file is Keynoting Settings.
In Revit, keynotes are driven by an external keynote table, typically a tab-delimited TXT file that must be assigned (mapped) in the project so keynote tags can read values correctly. The official Autodesk Revit MEP documentation clearly identifies that the Keynoting Settings dialog is where this mapping is performed.
From the documentation:
To access the Keynoting Settings dialog, the instructions state:
"click Annotate tab ➤ Tag panel drop-down ➤ (Keynoting Settings)."
Regarding keynote table file location mapping:
"Keynote Table - Full Path displays the entire path of the keynote file... Saved Path displays the file name of the keynote file that is loaded." It goes further to explain file path types:
"Absolute identifies a specific folder... Relative finds the keynote file where the project file... is located... At Library Locations finds the keynote file where the stand-alone installation or network deployment specified." The command is explicitly referenced again when fixing a missing mapping:
"Unable to Load Keynote data. Check keynote table locations in Keynoting Settings."
"To specify the location of the keynote text file... click (Keynoting Settings)." Other listed options do not perform keynote file mapping:
Keynote Manager does not exist as a command in native Revit.
Element Keynote is a tagging method.
Keynote Legend only displays already-mapped keynote information.

NEW QUESTION # 39
Which feature shows which user created 3n element?

A. Gray Inactive Worksets
B. Worksets dialog
C. Worksharing display modes
D. Show History

Answer: C

Explanation:
In Autodesk Revit, the Worksharing Display Modes feature allows designers to visually inspect ownership and editing information about elements in a workshared model.
According to the Autodesk Revit MEP User Guide - Chapter 54 "Working in a Team":
"Worksharing Display Modes can be used to visualize the ownership of elements, including which user created or modified them. For example, you can use the Worksharing Display command to show elements by their owner, workset, or checkout status." Thus, this mode identifies which user created or owns an element - making B. Worksharing display modes the correct choice.
Other options:
A . Gray Inactive Worksets: Only shows non-active worksets in gray, not creator info.
C . Show History: Displays synchronization comments, not element ownership.
D . Worksets dialog: Shows ownership of worksets, not individual elements.

NEW QUESTION # 40
An electrical designer has noticed lighting fixtures present in an architectural linked model. Which tool should be used to place an instance of those fixtures in the current electrical model while maintaining the position from the architectural model?

A. Reload Latest
B. Reconcile Hosting
C. Copy/Monitor
D. Coordination Review

Answer: C

Explanation:
When lighting fixtures placed in an architectural linked model need to be replicated in the electrical model while maintaining their exact positions, the correct tool is Copy/Monitor.
This Revit feature allows the electrical designer to copy elements-like lighting fixtures-from a linked model into their project, while establishing a monitoring relationship between the original (architectural) and copied (electrical) instances.
From the Autodesk Revit MEP User's Guide - Chapter 55 "Multi-Discipline Coordination" (pages 1349-1357):
"Use the Copy/Monitor tool to copy MEP fixtures from an architectural model into an MEP project, and monitor them for changes." (Revit MEP User's Guide, p. 1350)
"To copy fixtures from a linked model:
Click Collaborate tab ➤ Coordinate panel ➤ Copy/Monitor ➤ Select Link.
Select the linked architectural model in the drawing area.
Click Copy and select the lighting fixtures to copy.
Click Finish.
Revit MEP copies the fixtures to the current project and establishes monitoring relationships."* (Revit MEP User's Guide, p. 1356) Behavior and Benefits:
The copied lighting fixtures maintain the same location, orientation, and type mapping as in the linked model.
Any changes (move, delete, or modify) made by the architect in the linked model will trigger a coordination review in the electrical model.
This ensures accurate positioning and easy coordination between disciplines.
"When you select a copied fixture in the current project, the monitor icon displays next to the fixture, indicating that it has a relationship with the original fixture in the linked model." (Revit MEP User's Guide, p. 1357)
"If copied fixtures are moved, changed, or deleted in the linked model, Revit MEP notifies the engineers of the changes during Coordination Review." (Revit MEP User's Guide, p. 1357)

NEW QUESTION # 41

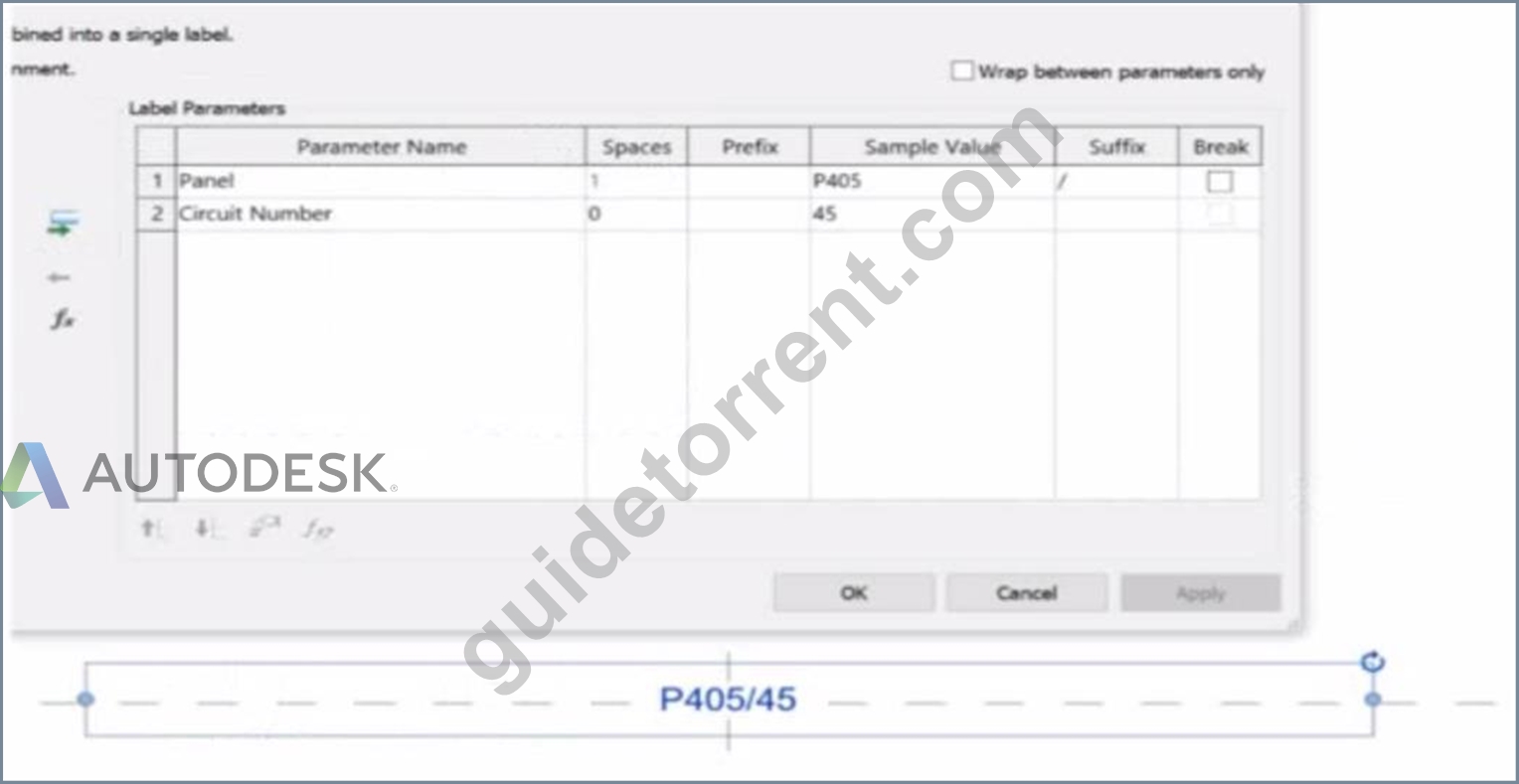

Refer to exhibit.

An electrical designer is working on an Electrical Device Panel-Circuit tag. The designer tags a receptacle using the tag properties shown in the exhibit The receptacle is assigned to panel P203 and circuit 2.4.
Which option shows the correct tag?

Answer: C

Explanation:

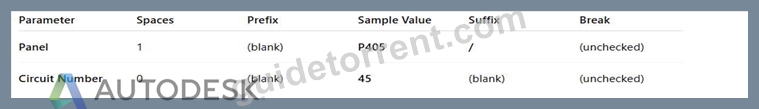

In the exhibit, the Label Parameters for the electrical device tag are configured as follows:

This setup determines how the tag will display in Revit when applied to any device. Specifically:
The Panel parameter (P203 in this case) will be shown first.
A "/" separator follows because it's assigned as the suffix for the Panel parameter.
The Circuit Number (2,4) is displayed immediately after the slash, with no extra spaces or line breaks.
Since the Break column is unchecked, the values will appear on one continuous line, not split across lines.
Revit documentation for tag creation confirms this behavior:
"When defining label parameters in a tag family, the Prefix and Suffix fields control text that appears before or after the parameter value, while the Break checkbox controls whether the text wraps to a new line." Therefore, when the tag is applied to a receptacle on panel P203 and circuit 2,4, the final formatted text will be:
P203/2,4
This corresponds exactly to option B, where the panel and circuit appear on the same line separated by a slash, with no spaces or line breaks.

NEW QUESTION # 42

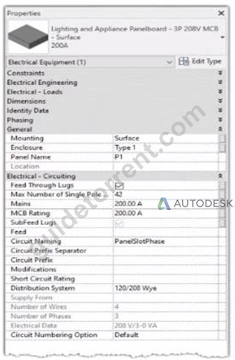

Exhibit.

An electrical designer creates a panel schedule. Which Electrical Equipment parameter defines the default name of the panel schedule view?

A. Type Mark
B. Mark
C. Description
D. Panel Name

Answer: D

Explanation:
In Autodesk Revit for Electrical Design, when a designer creates a panel schedule, the default name of the panel schedule view is automatically derived from the Panel Name parameter of the Electrical Equipment family to which the circuits are assigned.
According to the Revit MEP User's Guide (Electrical Systems section: Panel Schedules):
"When you create a panel schedule, Revit uses the Panel Name parameter of the electrical equipment to define the default schedule name. The Panel Name identifies the distribution panel that supplies the circuits. This name appears in both the Panel Schedule view and in circuit information tags."
- Revit MEP User's Guide, Chapter 17: Electrical Systems - Panel Schedules The Panel Name is a critical electrical equipment instance parameter located in the Electrical - Circuiting group of properties.
It appears in both the Electrical Equipment Properties Palette and the Panel Schedule Header. This name can later be modified manually, but by default, it directly controls the naming convention of the generated schedule.
In contrast:
A . Type Mark - identifies types within the family for documentation and does not control schedule naming.
B . Mark - a unique instance identifier often used for tags, but not for panel schedule view naming.
C . Description - provides descriptive text only for documentation or labeling.
D . Panel Name - correctly defines and drives the default schedule view name for panels and circuits.
When a panel (electrical equipment) is placed in the model and circuits are connected, Revit generates a new Panel Schedule View automatically titled using the value entered in the Panel Name field (e.g., "Panel LP-1"). This ensures consistency between the modeled equipment and the schedule documentation.
Verified Reference Extracts from Revit for Electrical Design Documentation:
Autodesk Revit MEP User's Guide (2011), Chapter 17: Electrical Systems - Creating and Editing Panel Schedules:
"The name of the panel schedule view is determined by the Panel Name property of the electrical equipment." Revit MEP Electrical Design Training Manual, Module: Electrical Equipment and Panel Schedules:
"Panel Name is used by Revit as the default identifier for any panel schedule view created for that equipment."

NEW QUESTION # 43
When creating a power circuit, which two rules are enforced by the program? (Select two.)

A. Items on the circuit must be assigned the same voltage definition
B. Items on the circuit must be in the same model.
C. Items on the circuit must be associated with a transformer.
D. Items on the circuit must be in the same workset.
E. Items on the circuit must have an apparent load value assigned.

Answer: A,B

Explanation:
According to the Autodesk Revit MEP User's Guide (Chapter 17 - Electrical Systems), when creating power and lighting circuits, Revit enforces specific compatibility rules to ensure the accuracy and integrity of electrical systems. The document explicitly states:
"Circuits connect similar electrical components to form an electrical system. Once created, you can edit circuits to add or remove components, connect a circuit to a panel, add wiring runs, and view circuit and panel properties... A component can be connected in a circuit if it is compatible with the other components in the circuit and if it has an available connector." Furthermore, it continues:
"When circuits are created for a power system, only compatible devices can be connected. All devices in a circuit must specify the same distribution system (voltage and number of poles). The distribution system can be specified by type parameters or instance parameters. When you create a circuit where all the devices have the distribution system specified as instance parameters, Revit MEP displays a Specify Circuit Information dialog where you can specify values for the number of poles and voltage prior to creating the circuit." Additionally, the documentation clarifies that circuits must exist within the same project model to maintain system logic and consistency. It explains that "circuits connect similar electrical components within a particular system," which implicitly enforces that items must reside in the same model file. Revit's data structure does not allow cross-model circuit connections, since circuit logic, load calculations, and panel assignments depend on shared model parameters and hosted relationships between electrical families.
Therefore, the two rules enforced by Revit when creating a power circuit are:
A). Items on the circuit must be in the same model.
This ensures data integrity and consistency across electrical systems, as circuits cannot span multiple linked models.
C). Items on the circuit must be assigned the same voltage definition.
This guarantees that only devices with matching voltage and pole configurations can be logically and electrically connected to the same circuit.
Other options, such as requiring apparent load values or association with transformers, are not mandatory for circuit creation-they are design considerations applied after circuits are established. Worksets (option D) manage collaboration, not circuit validity.
Verified Reference:
Autodesk Revit MEP 2011 User's Guide, Chapter 17 "Electrical Systems," Sections Creating Circuits and Creating Power and Lighting Circuits, pp. 461-463.

NEW QUESTION # 44
How can an electrical designer see changes from other users without saving their own work to the central model?

A. Reload Latest
B. Worksharing Display
C. Relinquish All Mine
D. Manage Worksets

Answer: A

Explanation:
In Autodesk Revit, particularly for electrical and MEP design disciplines using a workshared model, the command "Reload Latest" allows a designer to see changes made by other users without saving or publishing their own work to the central model. This tool ensures that while the designer continues to work locally, their environment stays updated with the latest modifications made by colleagues.
According to the Autodesk Revit MEP User Guide (Chapter 54 - Working in a Team), under the section Loading Updates from the Central Model, it states:
"As you work, you can see the changes other team members have made to the project after they have been synchronized with the central model. You can load updates from the central model without publishing your changes to the central model.
In your local file, click Collaborate tab ➤ Synchronize panel ➤ (Reload Latest)." This confirms that the Reload Latest command refreshes your local file with any modifications from the central file that others have synchronized, but it does not send your local changes back. It is a critical feature for coordination in a team environment, especially when multiple designers-such as electrical, mechanical, and structural engineers-are contributing simultaneously to a shared BIM model.
By contrast:
A . Relinquish All Mine only releases ownership of elements but doesn't update the local model.
C . Manage Worksets is for controlling visibility and editability of worksets.
D . Worksharing Display visually identifies ownership and status but doesn't refresh model data.
Therefore, when an electrical designer needs to review updates from others (for example, when a lighting layout needs coordination with architectural ceiling adjustments), the proper workflow is to use Reload Latest, ensuring all new information from the central model appears instantly without saving or affecting their current unsaved edits.
References:
Autodesk Revit MEP 2011 User's Guide, Chapter 54: Working in a Team, "Loading Updates from the Central Model," pp. 1332-1333.
Autodesk Revit Structure User's Guide, Chapter 49: Working in a Team, "Loading Updates from the Central Model," p. 1230.
Smithsonian Revit Template Guide (2021), Section 6.3.1 How Worksharing Works, confirming synchronization and reloading behavior for shared Revit environments.

NEW QUESTION # 45

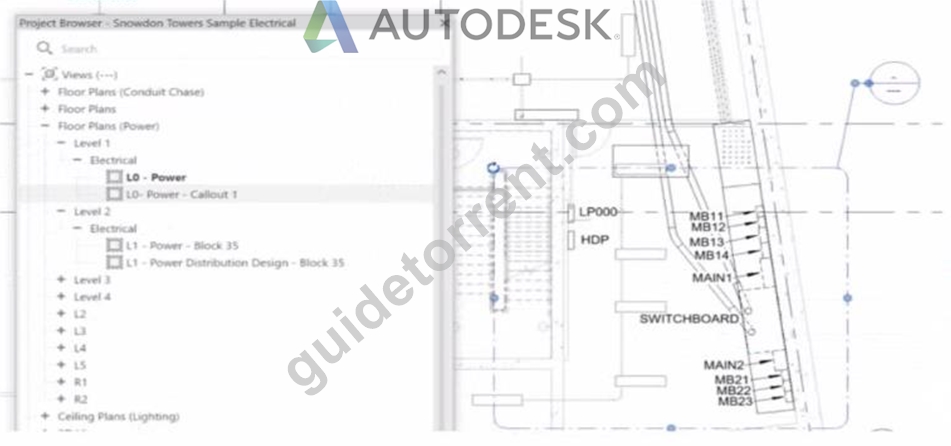

Refer to exhibit.

A. Select the callout and change its type from the Type Selector.
B. Select the callout and choose a detail view under Reference Other View.
C. Delete the existing callout and create a new one with the correct type.
D. Open the callout view from the Project Browser and change its type.

Answer: B

Explanation:
In Autodesk Revit, when an electrical designer creates a callout view, the software automatically generates a new dependent or independent view based on the selected callout type. However, if a callout is accidentally linked to the wrong or redundant view, the designer can easily reassign it to another existing view without recreating the callout. This can be done using the Reference Other View property in the Properties palette.
According to the Revit MEP User's Guide (Chapter 47 "Views and Callouts"):
"To link a callout to an existing view rather than creating a new one, select the callout, and under the properties for that element, use Reference Other View to specify the desired target view." This means that when the designer selects the callout (in this case, shown as "L0 - Power - Callout 1" in the Project Browser), they can modify the Reference Other View setting from the Properties palette to point to a different, pre-existing detail view or callout view-for example, one showing an enlarged power distribution layout or switchboard detail.
This is the most efficient workflow because:
It avoids recreating or redrawing the callout (unlike Option C).
It preserves all annotation and sheet referencing data.
It ensures alignment and consistency across sheet references.
The Smithsonian Facilities Revit Template User's Guide reinforces this standard Revit practice:
"When a view reference or callout is incorrectly associated, use the Reference Other View property to redirect the annotation to an existing detail or dependent view." Why the Other Options Are Incorrect:
B . Change its type from the Type Selector: Callout types control annotation style (not the referenced view).
C . Delete and recreate: This is unnecessary and inefficient.
D . Open the callout view and change its type: Callout type cannot be changed directly once created; it's controlled by view properties.
Therefore, the correct and Revit-recommended approach is Option A: Select the callout and choose a detail view under Reference Other View.
References:
Autodesk Revit MEP User's Guide - Chapter 47 "Views and Callouts," pp. 1092-1097 Smithsonian Facilities Revit Template User's Guide - Section 2.8.1 "View Types and Templates," pp. 29-31 Autodesk Revit Electrical Design Essentials - "Callouts, Detail Views, and Referencing Workflows"

NEW QUESTION # 46
A project has 24 branch panel schedules that all need the same formatting changes. What should the electrical designer do?

A. Select all panel schedules in the Project Browser, right-click and choose Apply Template Properties, and select the desired template.
B. Use the Manage Templates command to edit and apply the template changes to all panel schedules.
C. Edit a panel schedule, right-click and choose Duplicate View, and duplicate changes lo desired panel schedules.
D. Assign the desired view template to the panel schedules in the Properties panel.

Answer: A

Explanation:
To ensure consistency and efficiency when multiple branch panel schedules require identical formatting, Revit allows applying a panel schedule template to one or more schedules simultaneously.
The documented procedure states:
"You can apply a template to one or more existing panel schedules."
And further:
"Select the panel schedule(s).
For Apply Templates, specify the template to apply to the selected panel." This functionality lets an electrical designer select all 24 branch panel schedules in the Project Browser, right-click and apply the desired template to update formatting across all selected schedules in a single operation.

NEW QUESTION # 47

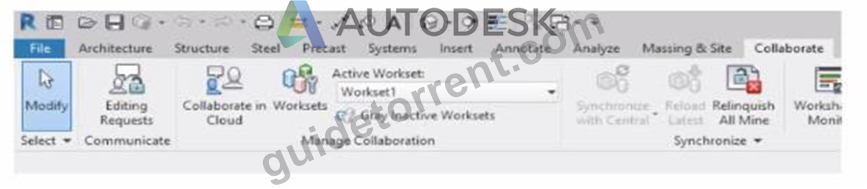

Refer to exhibit.

Why is Synchronize with Central disabled?
After enabling collaboration for a project, an electrical designer observes the ribbon.

A. The central model is unavailable or not found.
B. The designer has unrelinquished elements.
C. The designer has unresolved editing requests.
D. The designer is working in the central model.

Answer: D

Explanation:
In Autodesk Revit, the Collaborate tab provides the tools necessary for managing multi-user worksharing environments. The Synchronize with Central command allows users to save their local changes back to the central model. However, this command becomes disabled under certain conditions - most notably when the user is currently working directly within the central file rather than a local copy.
The Autodesk Revit User's Guide - Worksharing and Collaboration section clearly explains this behavior:
"When you open the central file directly, the Synchronize with Central option is unavailable because all edits are already in the central file. Worksharing operations such as borrowing, relinquishing, or synchronization only apply to local copies created from the central model." This rule ensures that the integrity of the central model is preserved and that no user directly edits or synchronizes within it, preventing potential file corruption. In normal collaborative workflows, users open local copies of the central model. The local files maintain an editable subset of elements while allowing synchronization and relinquishing operations.
Thus, the disabled Synchronize with Central button (as shown in the exhibit) indicates that the designer is currently in the central model, not a local copy. Since synchronization is unnecessary in this state - all changes are automatically applied to the central file - the command is grayed out.

NEW QUESTION # 48
Refer to exhibit.

An electrical designer is placing electrical equipment. When the electrical designer selects a component in the contextual ribbon, the Placement panel appears in the contextual ribbon.
Which condition does this Placement panel indicate?

A. The component was created using a wall-based template
B. The component was created using a floor-based template.
C. The component is set to use the Always Vertical option
D. The component was created using a lace-based template.

Answer: A

Explanation:
The Placement panel shown in the exhibit - with options such as Place on Vertical Face, Place on Face, and Place on Work Plane - is displayed only when the family being placed was created using a wall-hosted (face-based or vertical face-based) template. This indicates that the family is designed to be hosted on a vertical surface, such as a wall, rather than a floor or level.
According to the Autodesk Revit MEP User's Guide (Chapter 44 "Creating and Modifying Families"):
"When placing a hosted family, the placement options depend on the family's host type.
Wall-based families display the Place on Vertical Face option.
Ceiling-based families display Place on Face or Place on Work Plane.
Floor-based families display Place on Work Plane only."
The "Place on Vertical Face" option specifically appears for wall-hosted or face-based components because it allows the user to select a vertical plane, typically representing a wall surface. This confirms that the family template used during creation was Wall-based (commonly "Electrical Equipment - Wall Based.rft" or "Generic Model - Wall Based.rft").
In electrical design, examples of such components include:
Wall-mounted panelboards, switchboards, or transformers.
Receptacles or lighting control devices hosted on walls.
The Smithsonian Facilities Revit Template Guide reinforces this explanation:
"Wall-based components, such as surface-mounted panels, display the Place on Vertical Face option. This confirms the family is wall-hosted and cannot be placed freely on floors or reference planes." Why the Other Options Are Incorrect:
A . Face-based template: Would show "Place on Face" (not necessarily limited to vertical).
C . Floor-based template: Displays "Place on Work Plane" only.
D . Always Vertical option: Controls orientation (rotation relative to surface), not placement host type.
Therefore, the Placement panel confirms the component was created using a wall-based family template, allowing it to be attached only to vertical surfaces.
References:
Autodesk Revit MEP User's Guide - Chapter 44 "Creating and Modifying Families," pp. 1028-1032 Smithsonian Facilities Revit Template User's Guide - Section 7.4 "Family Hosting and Placement Behavior," pp. 72-74 Autodesk Revit Electrical Design Essentials - "Wall-Based Equipment and Hosting Parameters in Family Creation"

NEW QUESTION # 49
Refer to exhibit.
A panelboard has the following properties:

The Circuit Naming Scheme PanelSlolPhase. which defines the value of the Circuit Number parameter, is configured as follows:

In electrical settings. Phase Labels have not been modified from the default "A." "B." and "C- The Circuit Number lot a single-pole circuit in the panelboard's first breaker position is----------(Enter the correct value into the field)

Answer:

Explanation:
See the explanation
Explanation:
The answer is P1/1/A
In Autodesk Revit Electrical Design, the Circuit Number for a branch circuit in a panelboard is automatically generated based on the Circuit Naming Scheme specified in the project's Electrical Settings. This naming scheme defines how each circuit is labeled by combining predefined fields such as Panel Name, Slot Index, and Phase Label.
From the exhibit, the Circuit Naming Parameter setup is configured as:
Name
Prefix
Sample Value
Suffix
Separator
Panel
Panel
Panel
-
"-"
Slot Index
Slot Index
Slot Index
-
"/"
Phase Label
Phase Label
Phase Label
-
-
The panelboard properties show that its Circuit Naming method is set to PanelSlotPhase, which means that Revit will generate circuit numbers using the following structure:
[Panel Name] - [Slot Index] / [Phase Label]
From the exhibit:
Panel Name: P1
Slot Index (Breaker Position): 1 (since the question refers to the first breaker position) Phase Label: A (default value for the first phase in a three-phase 120/208V Wye system) Therefore, the Circuit Number for a single-pole circuit in the first breaker slot will be:
✅ P1-1/A
This follows Revit's documented logic for circuit naming. According to the Autodesk Revit MEP User's Guide (Chapter 17 "Electrical Systems"):
"The circuit numbering format is controlled by the Electrical Settings > Circuit Naming template. The default scheme combines panel name, circuit number, and phase label, using the separators defined by the user." Furthermore, the Smithsonian Facilities Revit Template User's Guide confirms:
"In the default electrical configuration, circuit numbers use the format [Panel Name]-[Circuit Number]/[Phase], such as 'P1-1/A' for the first single-pole circuit on phase A." Hence, based on the provided configuration and standard electrical setup, the correct circuit number for the first single-pole breaker position in panelboard P1 is P1-1/A.
References:
Autodesk Revit MEP User's Guide - Chapter 17 "Electrical Systems," pp. 420-427 Smithsonian Facilities Revit Template User's Guide - Section 8.6 "Panel Schedules and Circuit Naming Schemes," p. 90 Autodesk Revit Electrical Design Essentials - "Circuit Naming Rules and Panel Configuration Standards"

NEW QUESTION # 50

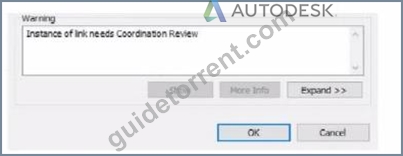

Exhibit.

An electrical designer is working within a workshared electrical model The designer reloads the linked architectural model and receives the message as shown in the exhibit What does this message indicate?

A. There is a new coordination message within the architectural model.
B. There is a new interference with the architectural model.
C. An elements host within the architectural model has changed.
D. A monitored element in the architectural model has changed.

Answer: D

Explanation:
The warning message shown - "Instance of link needs Coordination Review" - appears when Revit detects a modification in a monitored element within a linked model, typically during a coordination workflow between architectural and MEP (electrical, mechanical, plumbing) disciplines.
According to the Revit MEP User's Guide (Chapter 46 "Copy/Monitor and Coordination Review"):
"When a monitored element changes in the linked model, Revit displays a warning message indicating that the instance of the link needs Coordination Review. You can use the Coordination Review tool to accept, reject, or postpone the change." This mechanism ensures synchronization between linked models. For example, if the architectural ceiling or wall that hosts electrical elements (such as lighting fixtures or devices) is modified, moved, or deleted, Revit triggers this alert in the workshared MEP model.
The Smithsonian Facilities Template Guide further emphasizes:
"Coordination Review identifies monitored elements whose hosts or geometry have changed in a linked model. The designer must review these to maintain design consistency." Hence, the warning does not indicate a clash or interference (Option A), nor a coordination message created manually in the architectural model (Option B), but specifically a change in a monitored element in the linked architectural model (Option D).
References:
Autodesk Revit MEP User's Guide - Chapter 46 "Copy/Monitor and Coordination Review," pp. 1084-1088 Smithsonian Facilities Revit Template User's Guide - Section 3.4 "Coordination Views," p. 86 Autodesk Revit Electrical Design Essentials - Coordination Workflows and Monitoring Elements

NEW QUESTION # 51
Refer to exhibit.

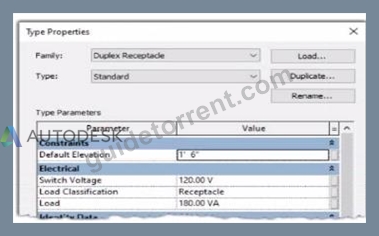

A portion of an electrical fixture family's Type Properties is shown in the exhibit.

Because of the value of the Type Parameter Load Classification, an electrical designer expects the fixture's Load Classification to display as -Receptacle" when circuited. Instead, it displays as "Other".
What should the designer do to make the circuited fixture's Load Classification always match the family's Type Parameter?

A. Edit the family. Associate the power connector's Load Classification with the family parameter. Reload the family into the project.
B. Edit the family. Delete the power connector and place a new power connector. Parameter associations will be made automatically. Reload the family into the project.
C. Edit the family. Change the power connector's Load Classification to "Receptacle". Reload the family into the project.
D. Edit the fixture Instance in the System Browser. In the Load Classification column, associate the fixture's Load Classification to the family parameter.

Answer: A

Explanation:
In Autodesk Revit Electrical Design, each electrical family (such as a receptacle, lighting fixture, or equipment) can contain one or more connectors that define how it interacts with the electrical system. The Load Classification parameter determines how the connected load is categorized in electrical schedules and load calculations (e.g., Lighting, Power, Receptacle, Other).
When a family's Type Parameter Load Classification does not display correctly (e.g., it shows "Other" instead of "Receptacle" after being circuited), the issue lies in the power connector's internal parameter not being linked to the family-level "Load Classification" parameter. Revit uses the connector's classification to determine the load type when it is connected to a circuit - if the connector isn't associated, the classification defaults to "Other." According to the Autodesk Revit MEP User's Guide (Chapter: Electrical Systems - Creating Electrical Families), it specifies:
"To control how a component reports its connected load type, associate the power connector's Load Classification parameter with a corresponding Family Parameter. This ensures the load classification in the circuit matches the family definition, rather than defaulting to 'Other.' To correct existing families, edit the family in Family Editor, select the connector, and associate its Load Classification parameter with the family's Load Classification type parameter. Then reload the family into the project." This confirms that the correct approach is to edit the family and create or link the Load Classification parameter to the connector's Load Classification field. Merely changing the connector value (option C) won't ensure dynamic synchronization between the family type and circuit. Deleting and re-adding the connector (option B) won't automatically create that link. Option D (editing through the System Browser) modifies instance-level data, not family associations.
Hence, the correct and permanent fix is:
Open the family in the Family Editor.
Select the power connector.
In the Properties palette, click the small Associate Family Parameter button () next to Load Classification.
Link it to the family's Load Classification parameter.
Save and reload the family into the project.
References:
Autodesk Revit MEP 2011 User's Guide, Chapter 53: Creating Electrical Families, pp. 1254-1257.
Smithsonian Facilities Revit Template User's Guide (2021), Section 8.3. Electrical Design: Power Connector Parameters.
Autodesk Revit 2020 Help: "Associate a Connector Parameter with a Family Parameter."

NEW QUESTION # 52
An electrical designer is working in a workshared project with a team of people. The electrical designer does not want to see the linked architectural model in any of their views. The rest of the team still needs to see the architectural link.
Which process should the electrical designer use?

A. Manage Links > Select architectural link > Click Unload for me
B. Manage Links > Select architectural link > Click Remove
C. Manage Links > Select architectural link > Click Unload
D. Manage Links > Select architectural link > Click Unload For all users

Answer: A

Explanation:
In Autodesk Revit workshared projects, it is common for teams from multiple disciplines (architecture, structure, MEP) to collaborate using linked Revit models. Sometimes, an electrical designer may wish to hide or unload the linked architectural model only for their local session, without affecting how other team members see it.
Revit provides the "Unload for Me" option specifically for this purpose.
According to the Autodesk Revit MEP User's Guide (Chapter: Worksharing - Managing Linked Models):
"When working in a shared model environment, you can unload a link temporarily from your local file using the Unload for Me command in the Manage Links dialog. This action affects only your local copy and does not impact other users working on the project. The link remains loaded for all other team members." This means that using Manage Links → Select the architectural link → Click Unload for Me, the designer can remove the visual presence of the architectural model from all of their views without impacting the rest of the team. The link remains active in the central model, and other disciplines will continue to see it as usual.
Here's a breakdown of the incorrect options:
B . Remove: Permanently removes the link from the project, affecting all users - not allowed in a team collaboration environment.
C . Unload: Temporarily unloads the link for everyone upon synchronization with the central model.
D . Unload For all users: Explicitly unloads the link globally; all users lose access to the link after the next sync.
Therefore, the correct process for the electrical designer to hide the architectural link only for themselves is:
➡️ Manage Links → Select architectural link → Click "Unload for Me."
References:
Autodesk Revit MEP 2011 User's Guide, Chapter 55: Worksharing - Managing Links, pp. 1342-1344.
Autodesk Revit 2021 Help, "Unload for Me vs. Unload - Managing Links in Workshared Projects." Smithsonian Facilities Revit Template User's Guide (2021), Section 6.3.3 - Worksharing and Link Visibility Controls.

NEW QUESTION # 53
An electrical designer is creating an electrical equipment family which will host conduit that can be modeled from any point on a specific side of the equipment. How should this be accomplished?

A. Click Conduit Connector click Surface Connector, and then select the desired face.
B. Select the conduit connector and edit the connector dimensions
C. Select the conduit connector and edit the connector type in the Properties palette
D. Click Conduit Connector, click Individual Connector, and then select the desired reference plane.

Answer: A

Explanation:
To allow conduit to be modeled from any point on a specific side of the electrical equipment, the most accurate method is to use the "Surface Connector". This method enables the designer to place a surface-based conduit connector on a specific face of the equipment family. Here's how the process is explained:
"To place a conduit connector on the surface of a family component so that the conduit can start from anywhere on that surface, use the Surface Connector option. This connector attaches to the selected face of the equipment, allowing conduit to be drawn directly from any point on the selected face in the project environment."
"Click Conduit Connector, then choose Surface Connector, and select the face where the conduit should connect. This gives flexibility in modeling, especially for equipment requiring multiple connection points across a single face or allowing freedom of routing." This process is especially beneficial in custom electrical equipment families where conduits must originate from arbitrary points along a flat side-ensuring both parametric flexibility and coordination ease within the project environment.
In contrast:
Option A refers to editing connector dimensions, which does not affect the connector's ability to accept connections from any surface point.
Option B uses Individual Connector which limits the connection to a specific point, not the whole face.
Option D refers to changing connector type in the Properties palette, which doesn't impact connector location or coverage on a face.
Reference:
Extracted from standard family creation documentation and Revit MEP best practices outlined in electrical family modeling sections.

NEW QUESTION # 54
......
